Buy PNB-60
PNB-60 Specifications
| Model | Frequency | Ports | Port Output Power | Dynamic Range | Effective Directivity | Price | Action |
|---|---|---|---|---|---|---|---|
| PNB-60 | 100 kHz - 6 GHz | 2 | -35 dBm to +5 dBm | 100 dB - 120 dB | >40 dB | $1,498.00 |
PNB-60 Overview

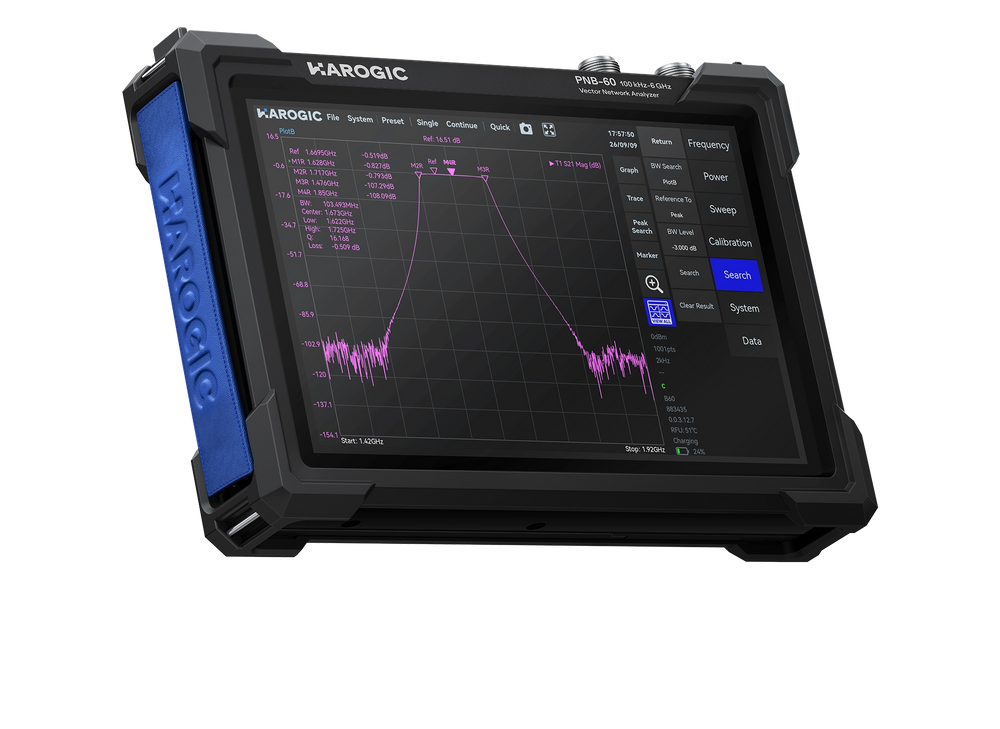

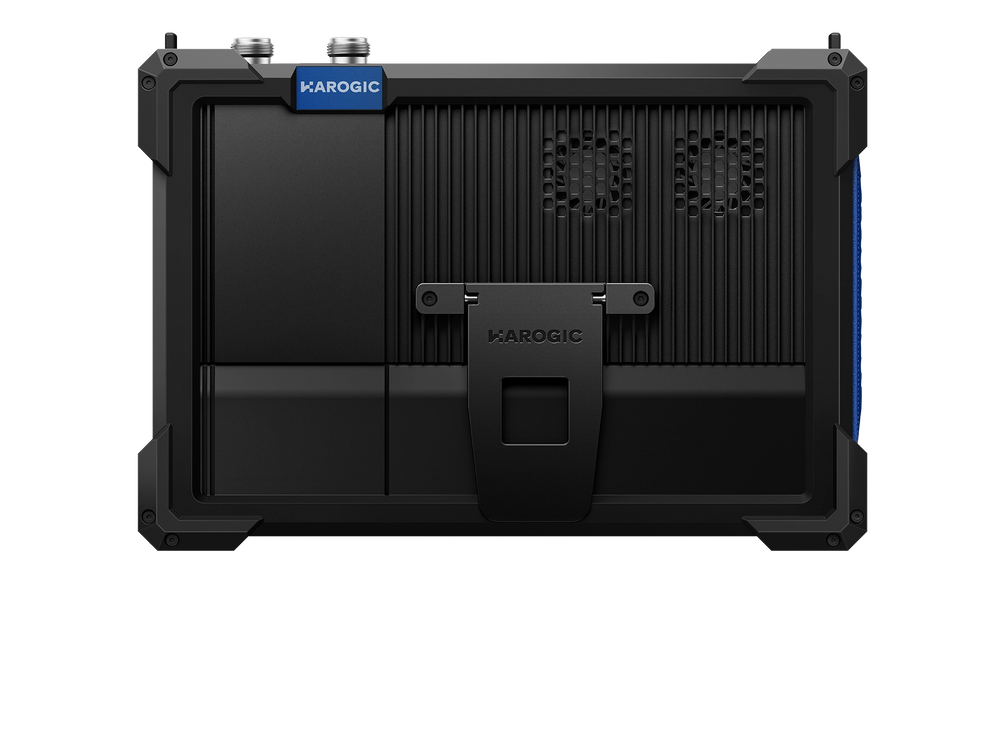

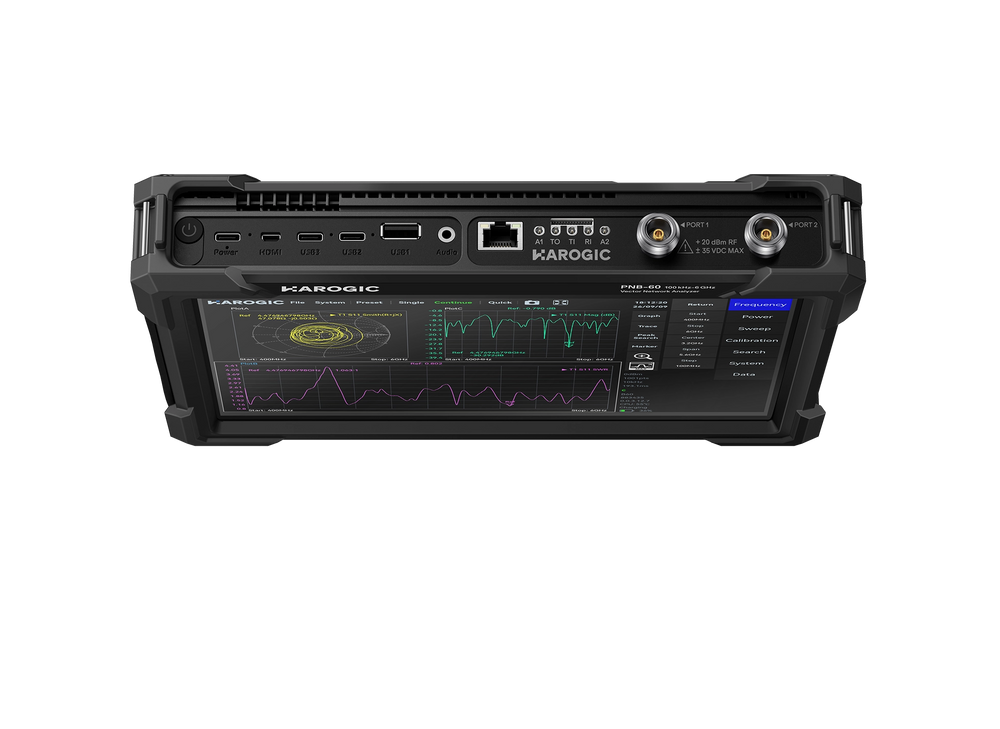

The HAROGIC PNB-60 is a handheld two-port vector network analyzer covering 100 kHz to 6 GHz. It supports full S-parameter measurements, including S11, S12, S21 and S22, for filters, amplifiers, cables, antennas and other RF devices.

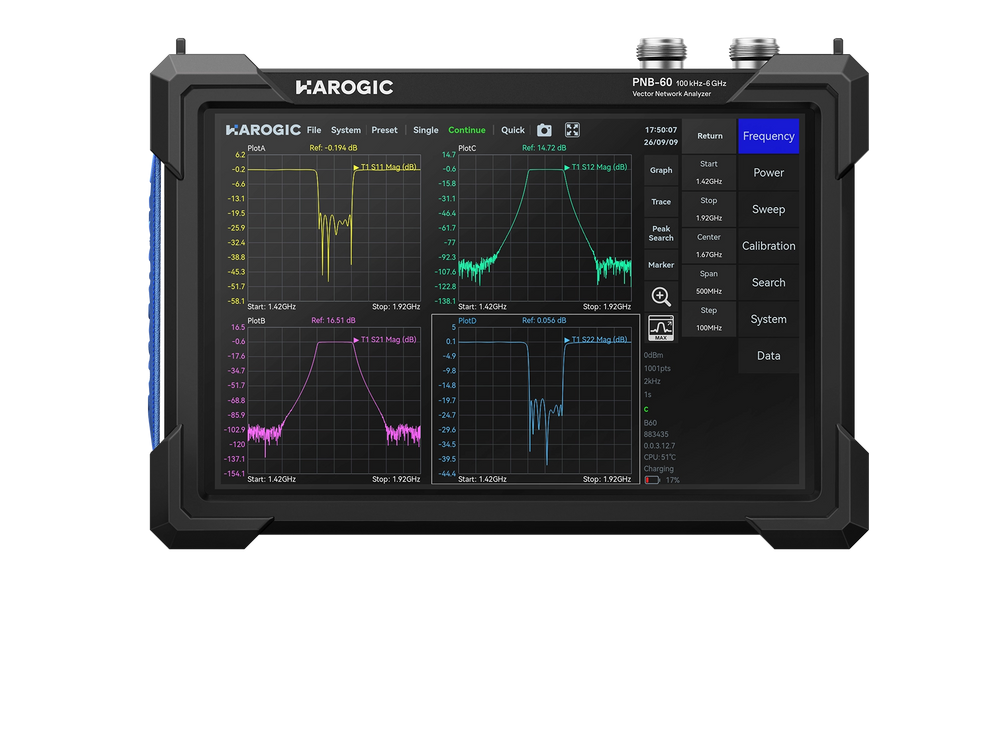

Its 10.1-inch high-resolution multi-touch display, professional receiver architecture and high-performance directional couplers provide an intuitive all-in-one test experience. The PNB-60 supports manual or electronic calibration, Smith chart and VSWR displays, CSV and S2P export, SCPI commands and remote control over LAN. Battery-powered operation makes it suitable for laboratory R&D, production, field installation and on-site maintenance.
Included Accessories
A ready-to-measure accessory package is included with the PNB-60 at no additional cost.
Power Adapter
× 1
Power Cord
× 1
ECB-60 Electronic Calibration Module
× 1
Matched Loads
× 2
USB Cable
× 1
CKB Series Armored Amplitude- and Phase-Stable Cables
× 2
SMA Female-to-Female Adapter
× 1
Wrench Set
× 1
