SGA-60 Specifications
| Model | Frequency | Phase Noise 1 GHz, 10 kHz Offset |
Maximum Output Level | Real-time Bandwidth | Playback Bandwidth | Price | Action |
|---|---|---|---|---|---|---|---|
| SGA-60 | 9 kHz - 6 GHz | -124 dBc/Hz | 7 dBm -4 dBm | 50 MHz | 100 MHz | $2,298.00 |

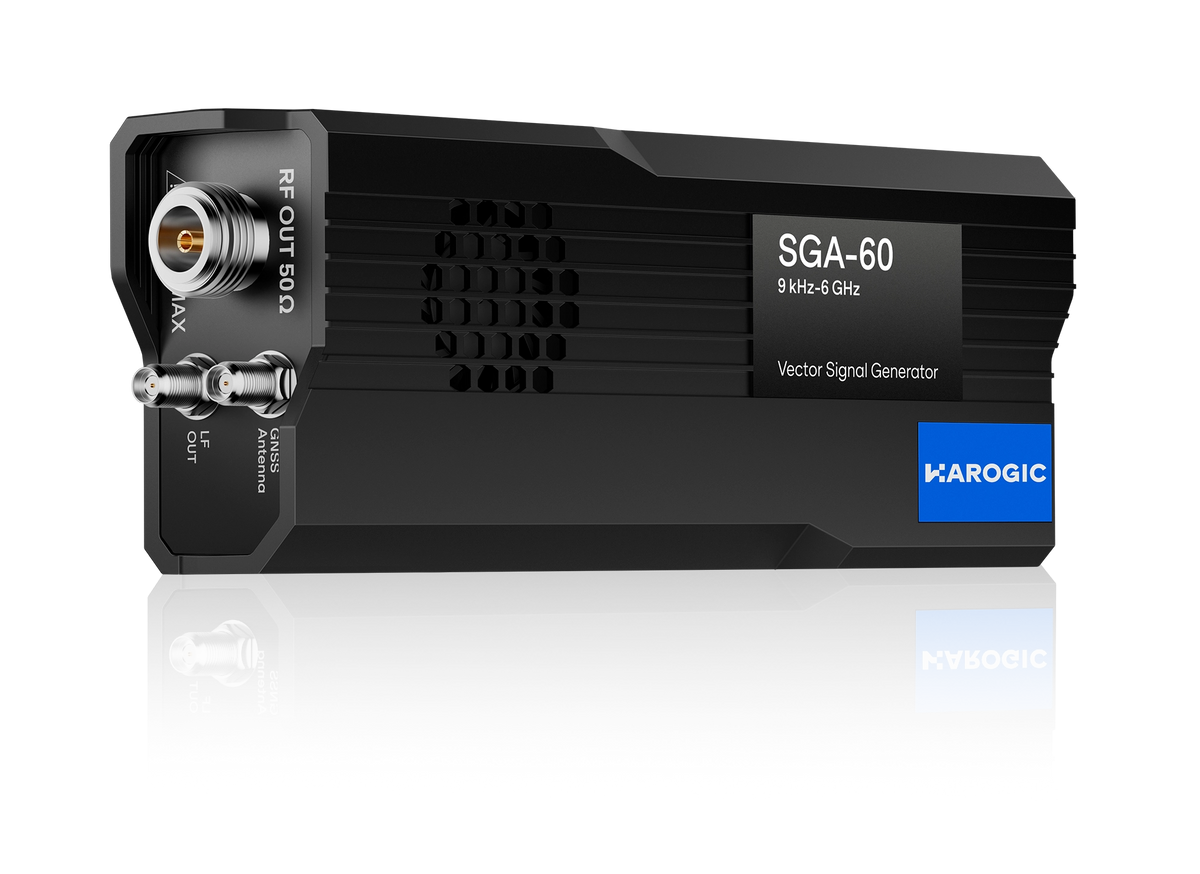

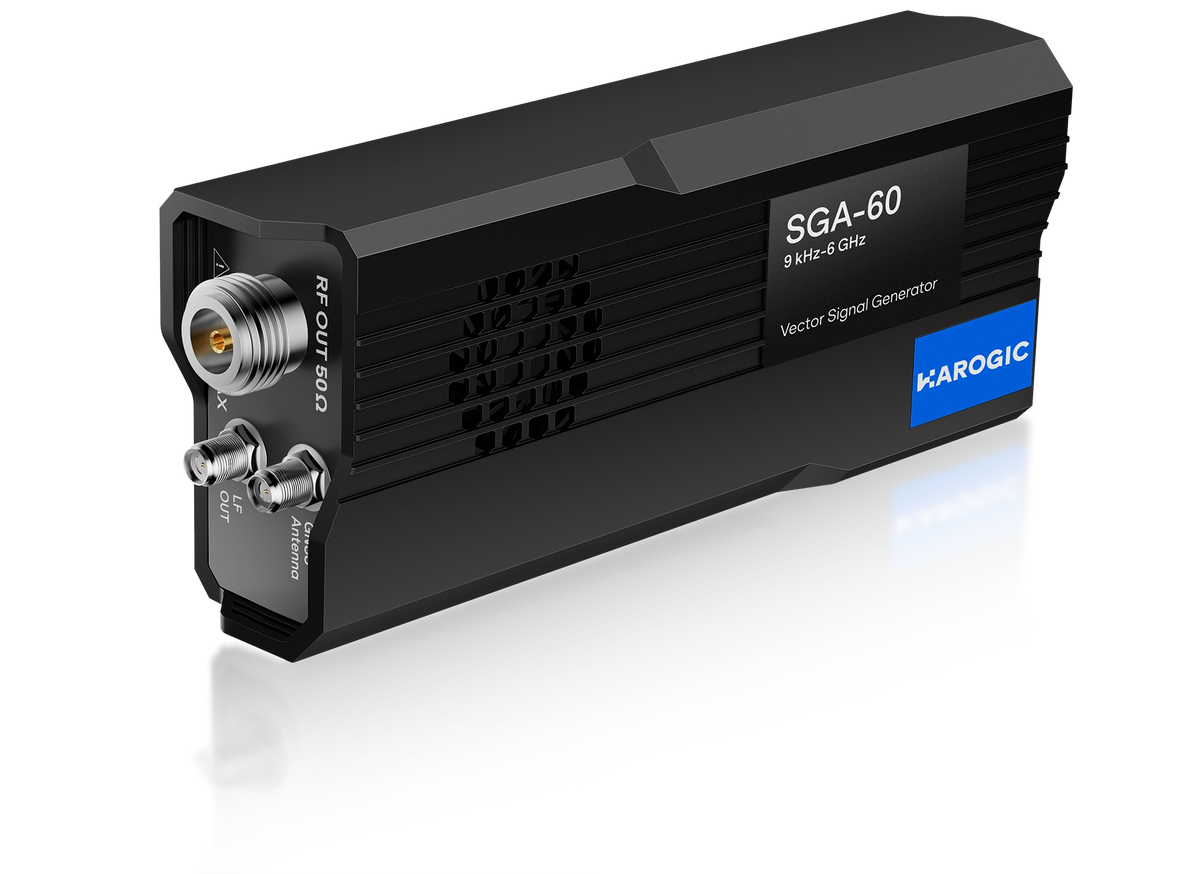

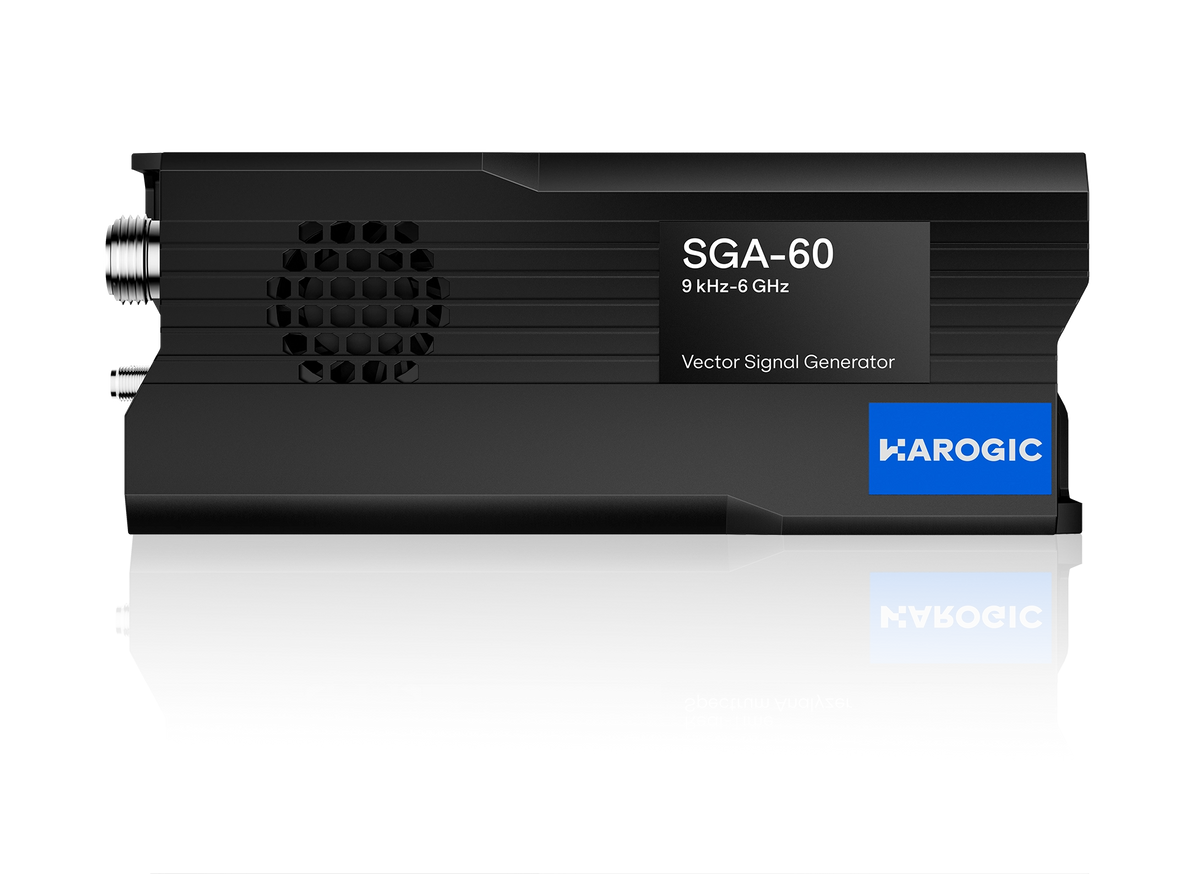

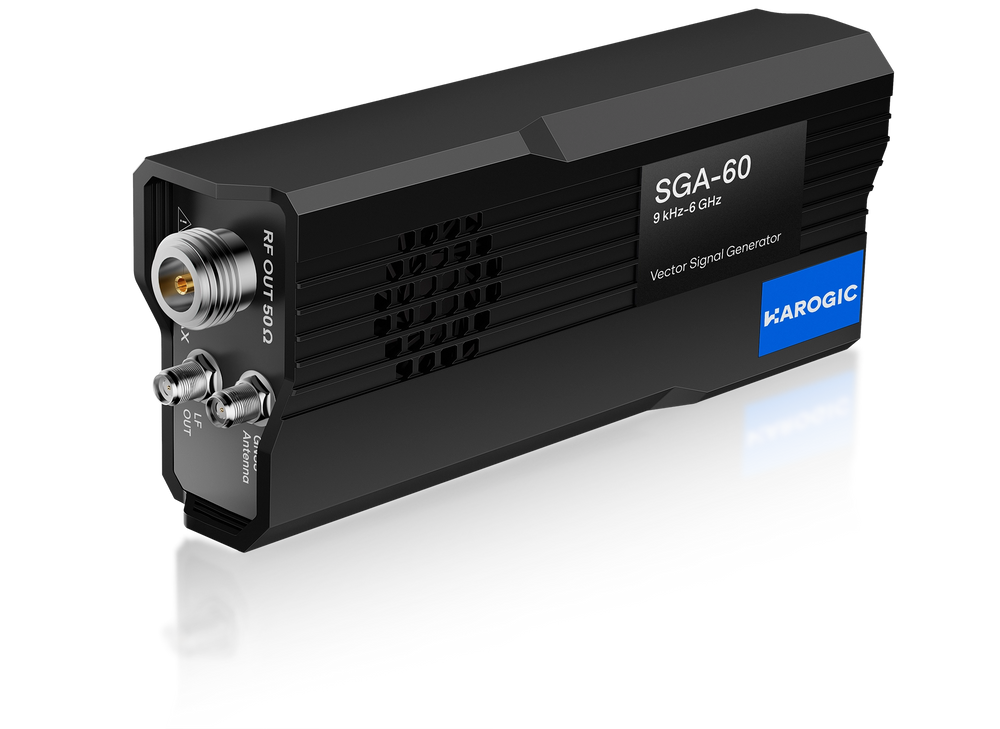

The HAROGIC SGA-60 Vector Signal Generator provides 9 kHz- 6 GHz frequency coverage, low phase noise, up to 14 dBm output power, 50 MHz real-time bandwidth and 100 MHz playback bandwidth.
SGA-60 Overview
The HAROGIC SGA-60 is a compact vector signal generator for RF signal generation, wireless communication testing, component verification, education and laboratory development.
It combines broad 9 kHz - 6 GHz coverage, low phase noise, flexible modulation capability and wide playback bandwidth in a portable platform.
9 kHz -6 GHz
Frequency coverage
-124 dBc/Hz
Phase noise at 1 GHz, 10 kHz offset
7dBm - 4 dBm
Maximum output level
100 MHz
Playback bandwidth
Options
| Code | Description | Type | Price | Action |
|---|---|---|---|---|
| 05 | Internal high precision GNSS | Built-in hardware | - | |
| 10 | Medium power output, 25 dBm | Built-in hardware | - | |
| 20 | IO Extension board | Accessory | - | |
| 40 | T1 temperature class | Built-in hardware | - |
Accessories
Flash disk
* 1
USB 3.0 data cable
* 1
USB power cable
* 1
Power adapter
* 1
