Buy VNB-60
VNB-60 Specifications
| Model | Frequency | Ports | Port Output Power | Dynamic Range | Effective Directivity | Price | Action |
|---|---|---|---|---|---|---|---|
| VNB-60 | 100 kHz - 6 GHz | 2 | -35 dBm to +5 dBm | 100 dB - 120 dB | >40 dB | $1,198.00 |
VNB-60 Overview

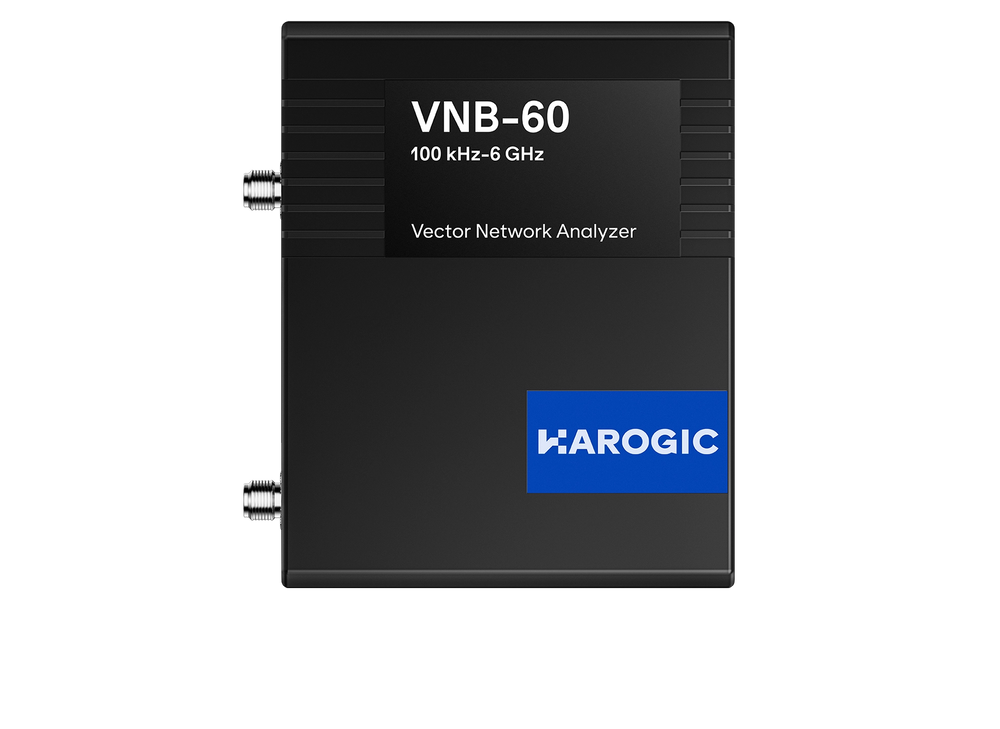

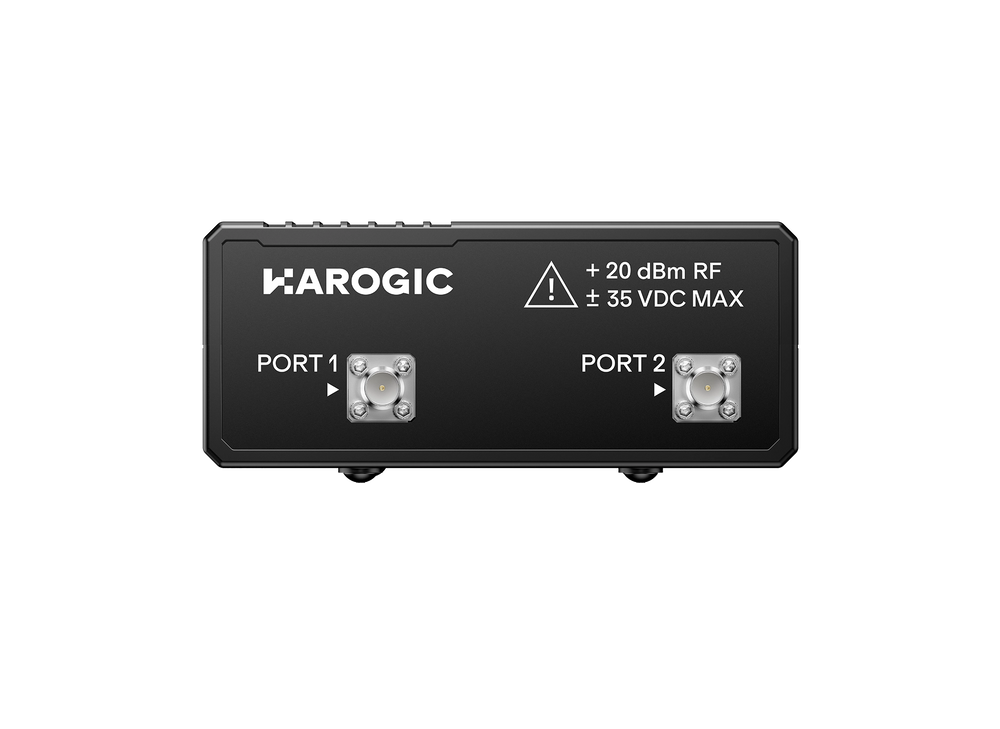

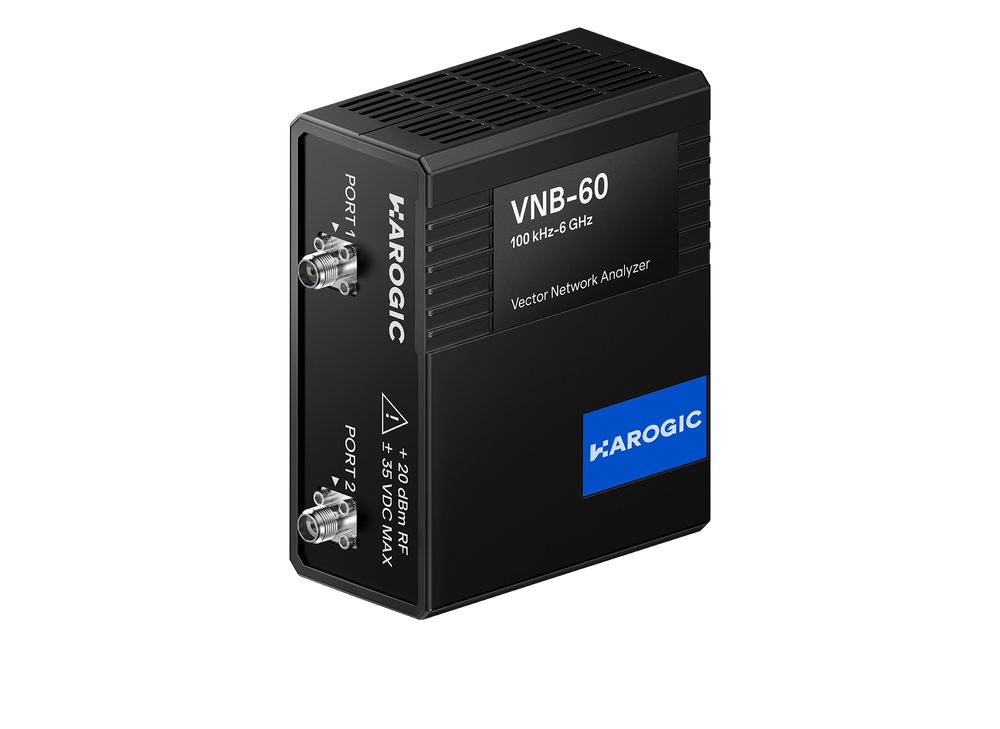

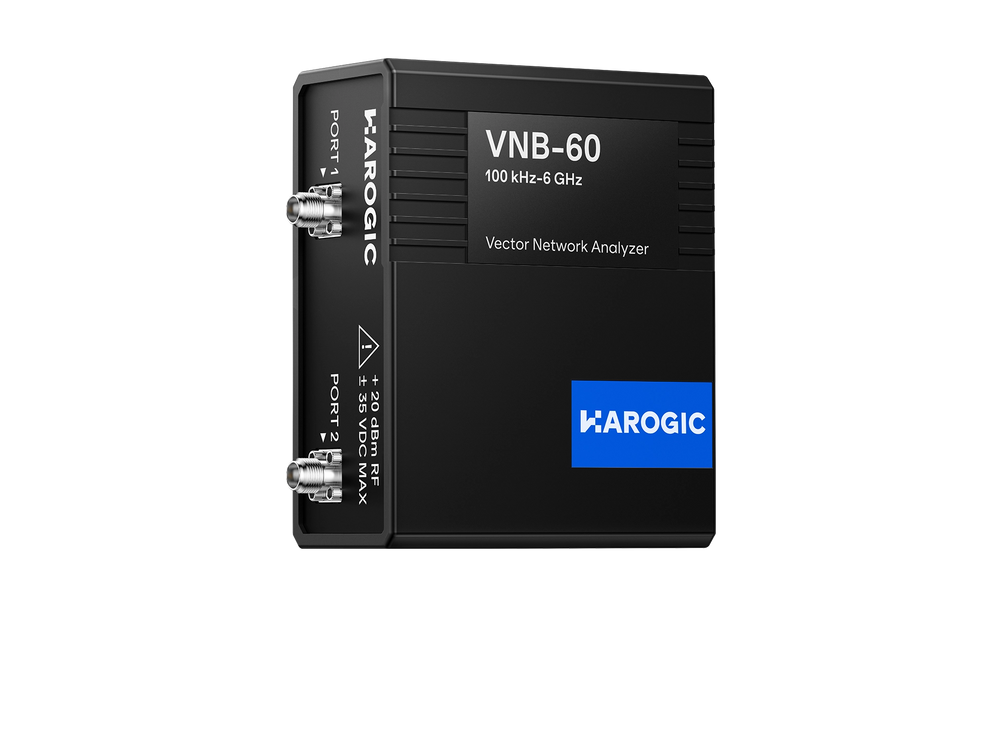

The HAROGIC VNB-60 is a compact USB vector network analyzer for professional RF component testing. Its two-port architecture supports complete S-parameter measurements, including S11, S12, S21 and S22, for filters, amplifiers, cables, antennas and other RF devices.

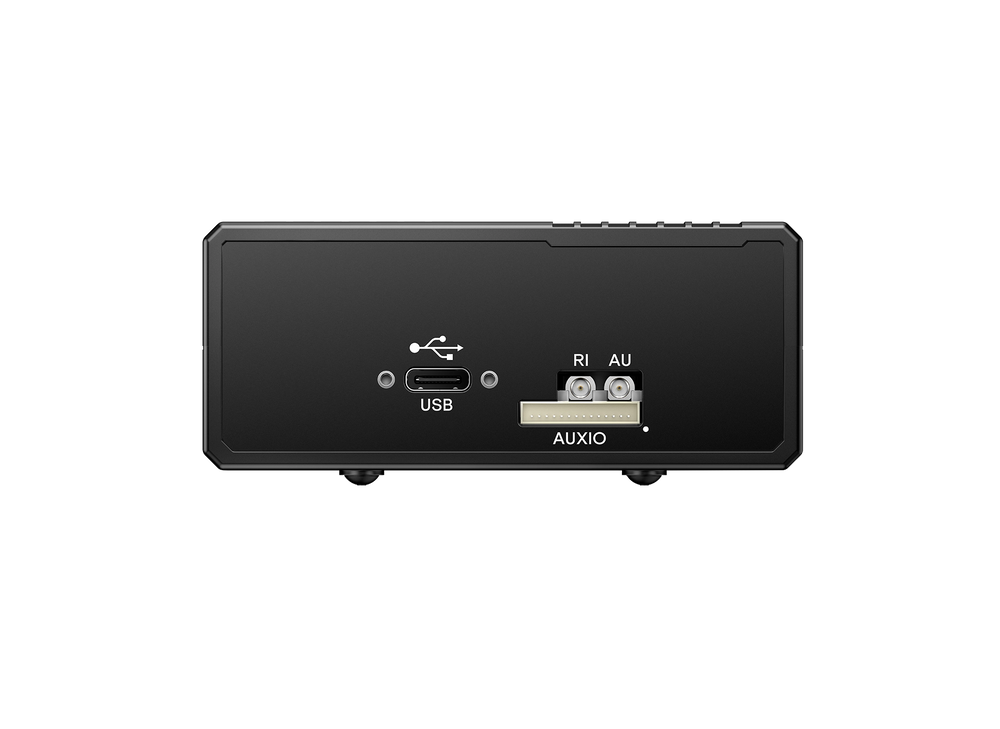

High-performance directional couplers, a professional receiver design and VNStudio software provide flexible sweep setup, manual or electronic calibration, Smith chart and VSWR displays, plus CSV and S2P export. USB Type-C supplies both data and power for convenient use on the bench, in production and in the field.
100 kHz - 6 GHzFrequency coverage
2 PortsFull S-parameter measurement
100 - 120 dBTypical dynamic range
≤246 gCompact USB design
Included Accessories
A ready-to-measure accessory package is included with the VNB-60 at no additional cost.
Matched Loads
× 2
ECB-60 Electronic Calibration Module
× 1
USB Cables
× 2
SMA Female-to-Female Adapter
× 1
Wrench Set
× 1
CKB Series Armored Amplitude- and Phase-Stable Cables
× 2
