Buy HDA Series
HDA Series Specifications
| Model | Frequency | Gain (typ.) | VSWR (typ.) | Typical Noise Figure | Weight | Price | Action |
|---|---|---|---|---|---|---|---|
| HDA-100 | 500 MHz - 10 GHz | 5 dBi (AMP OFF) 25 dBi (AMP ON) |
<2.0 | 1.5 dB | 680 g | $600.00 | |
| HDA-200 | 500 MHz - 20 GHz | 5 dBi (AMP OFF) 16 dBi (AMP ON) |
<2.0 | 1.9 dB | 680 g | $1,000.00 |
HDA Series Overview

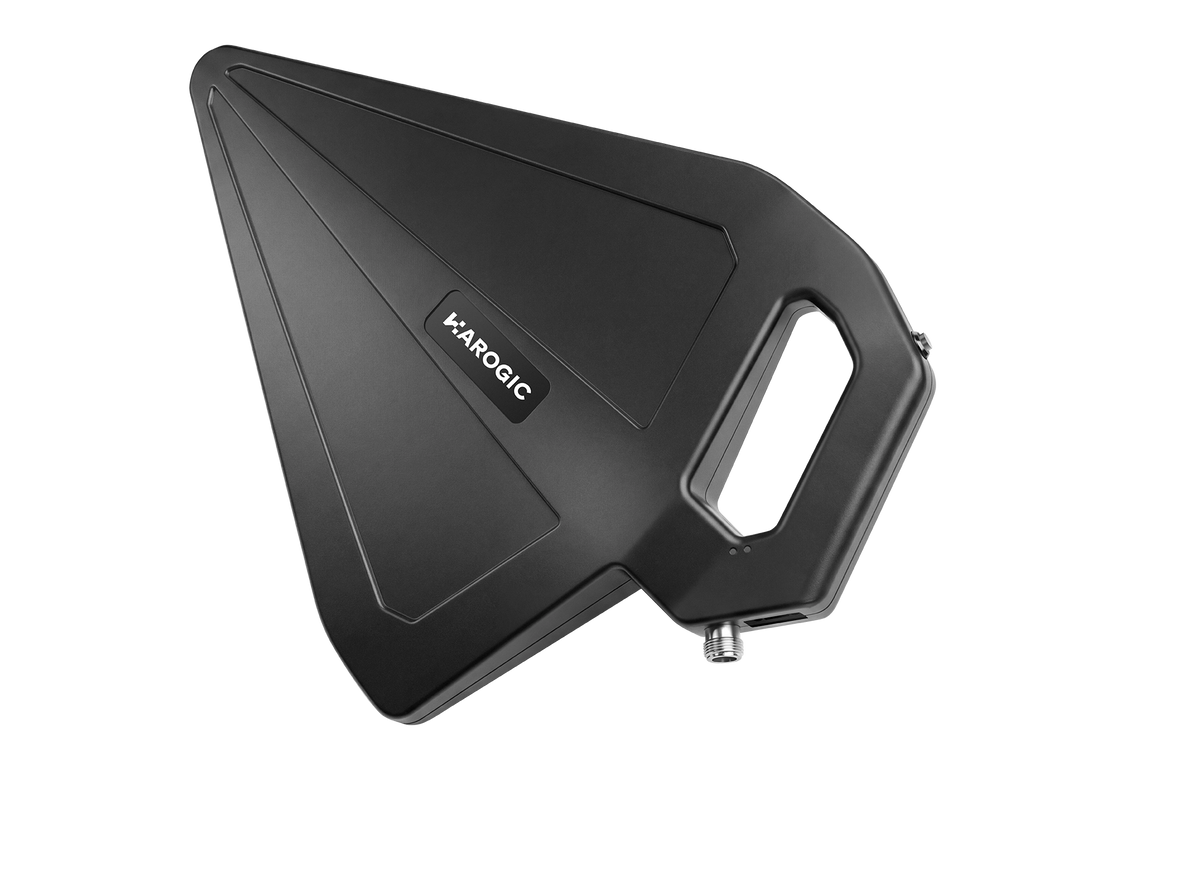

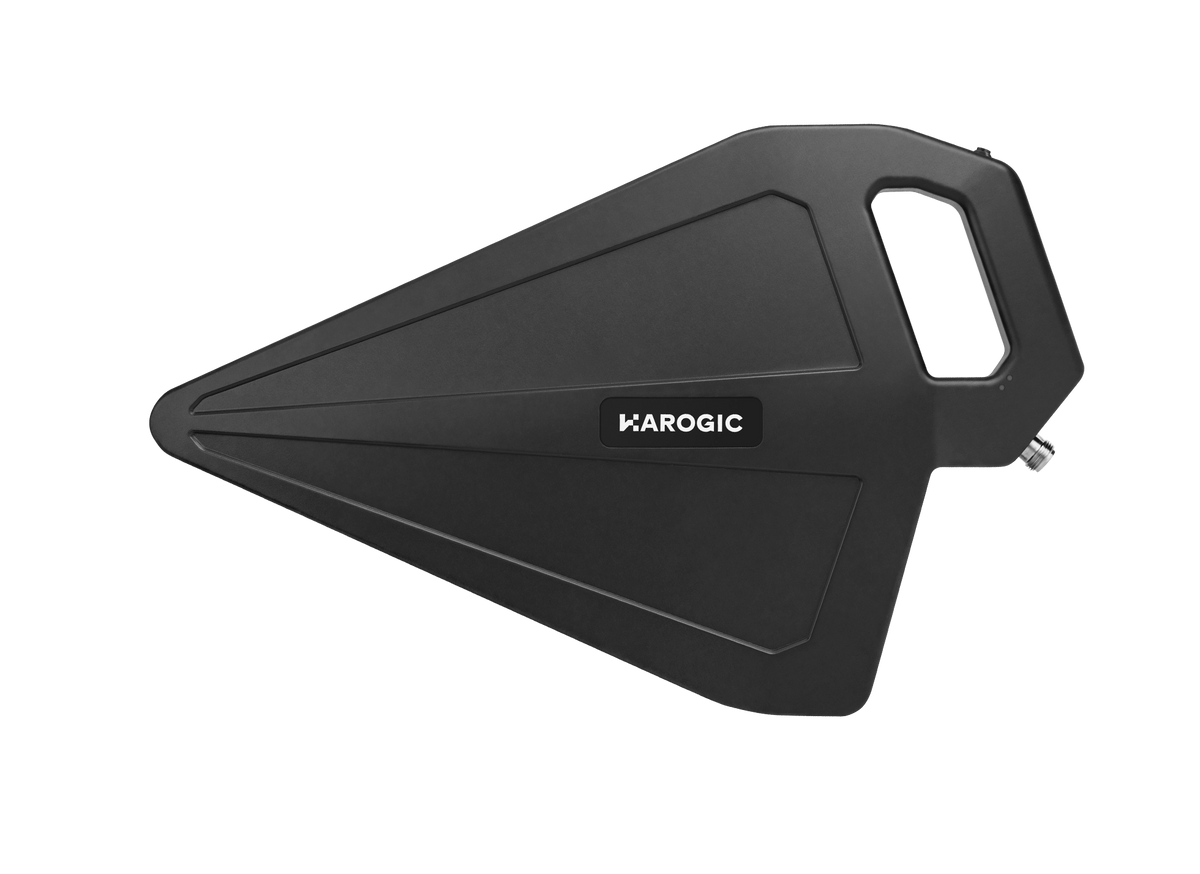

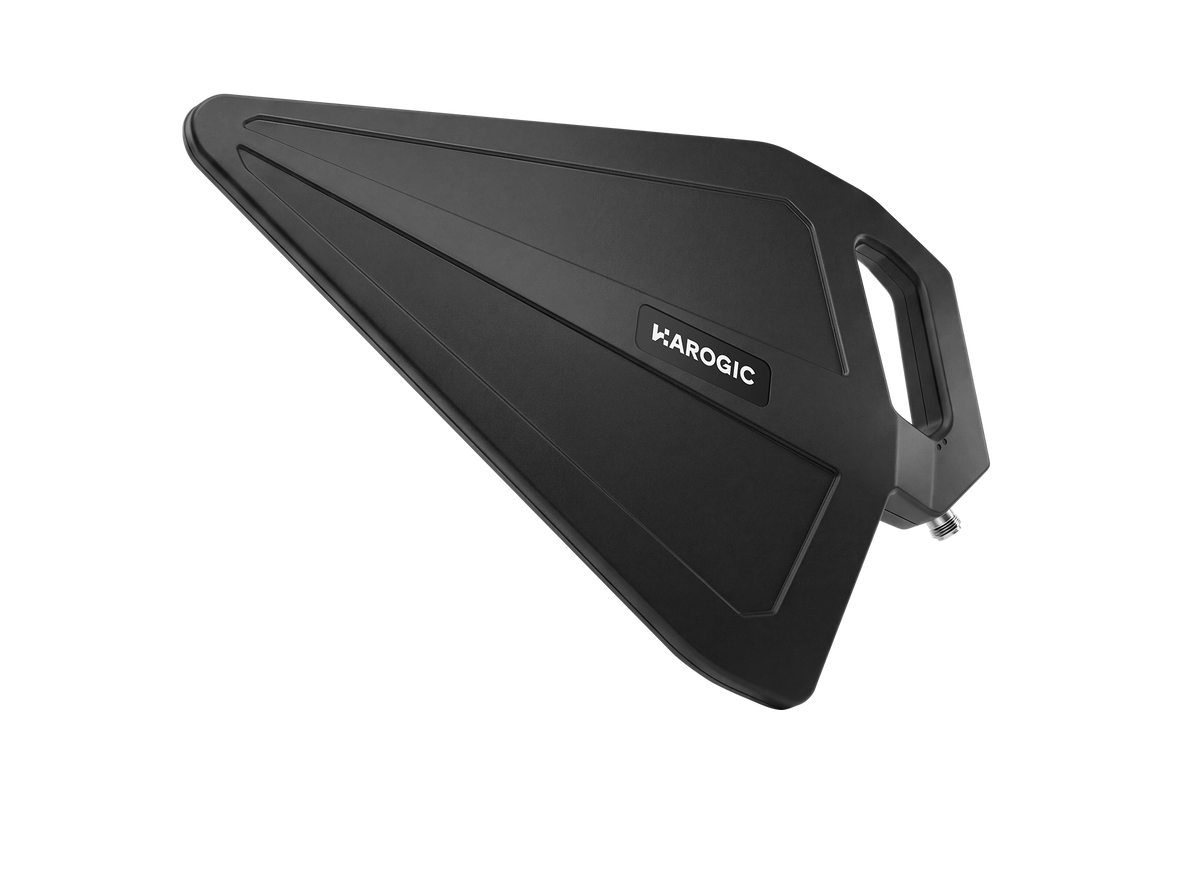

The HAROGIC HDA Series Handheld Active Directional Antenna delivers ultra-wideband coverage from 500 MHz to 20 GHz in a compact 680 g form factor.
With optimized directional pattern, switchable Bypass/Active modes, automatic antenna factor loading, and integrated attitude and heading reference support, it is suitable for field signal hunting, emitter discovery, and source localization.
500 MHz - 20 GHzMaximum frequency range
5 dBi / 25 dBiTypical passive and active gain
<2.0Typical VSWR
680 gCompact portable weight
