Buy New SAN Series
SAN Series Specifications
| Model | Frequency | Phase Noise 1 GHz,10 kHz Offset |
DANL 1 GHz,Amp On |
Analysis Bandwidth | Sweep Speed | Price | Action |
|---|---|---|---|---|---|---|---|
| SAN-45 | 9 kHz-4.5 GHz | -110 dBc/Hz | -168 dBm/Hz | 50 MHz 100 MHz Optional |
1 THz/s | $1,298.00 | |
| SAN-60 | 9 kHz- 6 GHz | -110 dBc/Hz | -168 dBm/Hz | 50 MHz 100 MHz Optional |
1 THz/s | $1,998.00 | |
| SAN-90 | 9 kHz - 9 GHz | -110 dBc/Hz | -168 dBm/Hz | 50 MHz 100 MHz Optional |
1 THz/s | $2,998.00 |

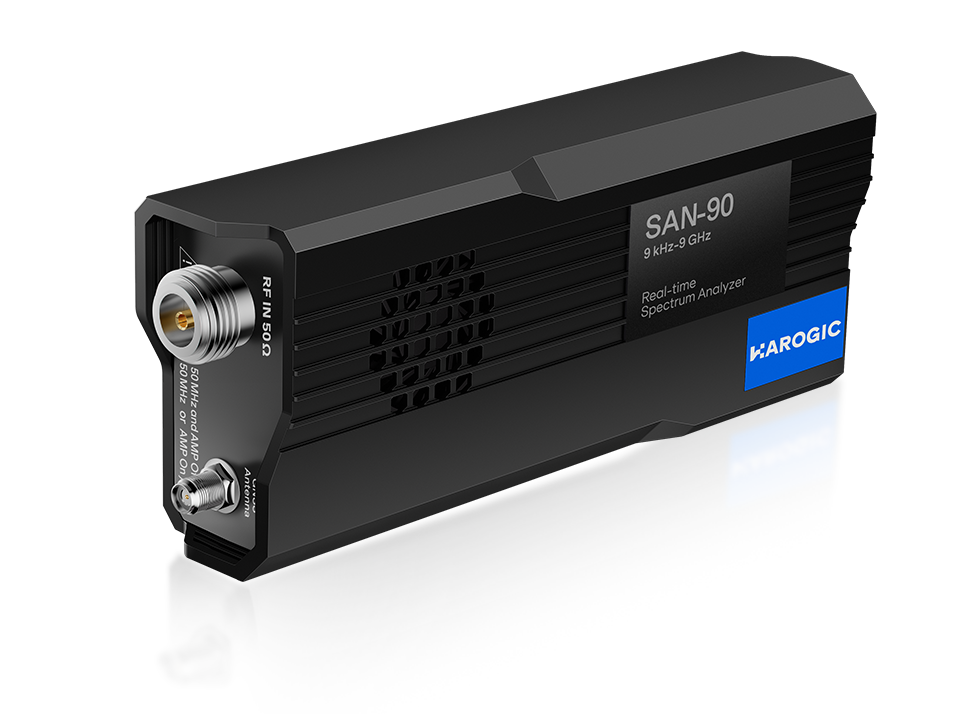

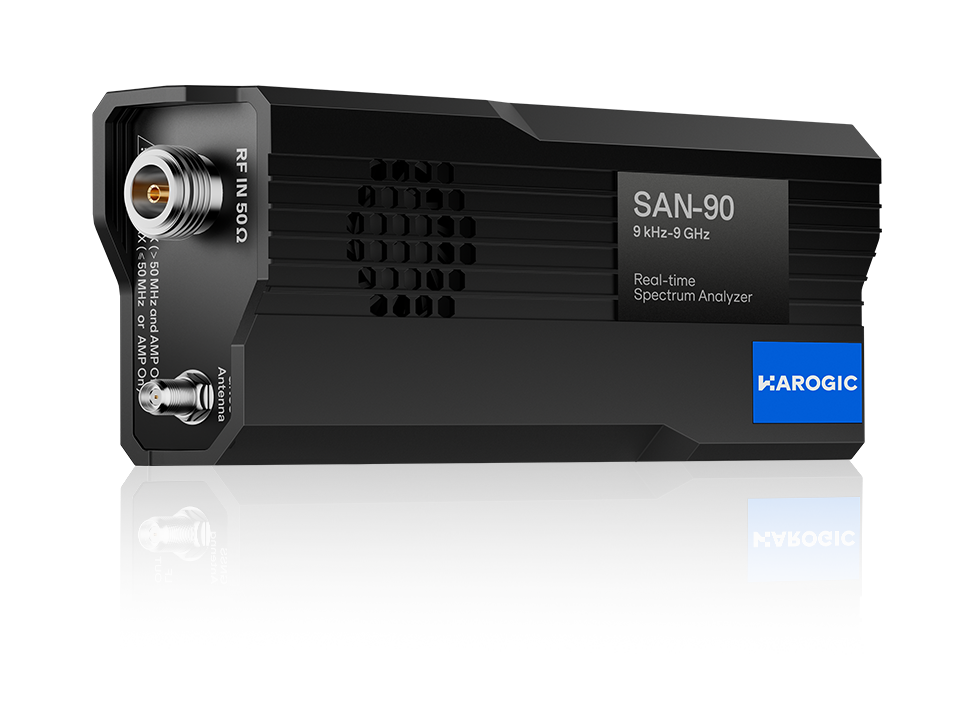

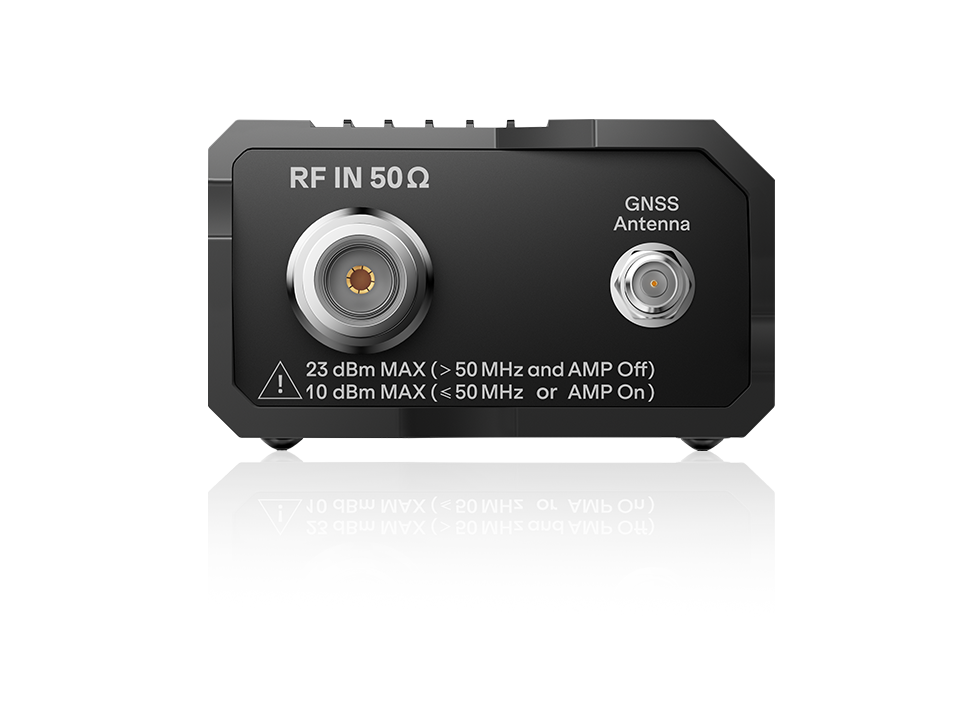

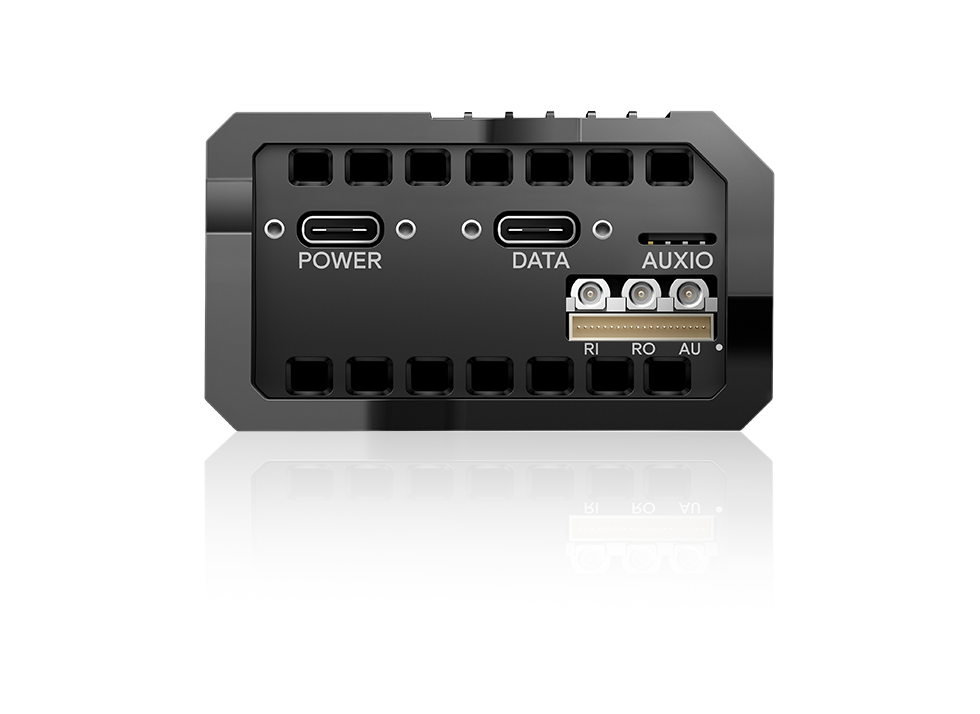

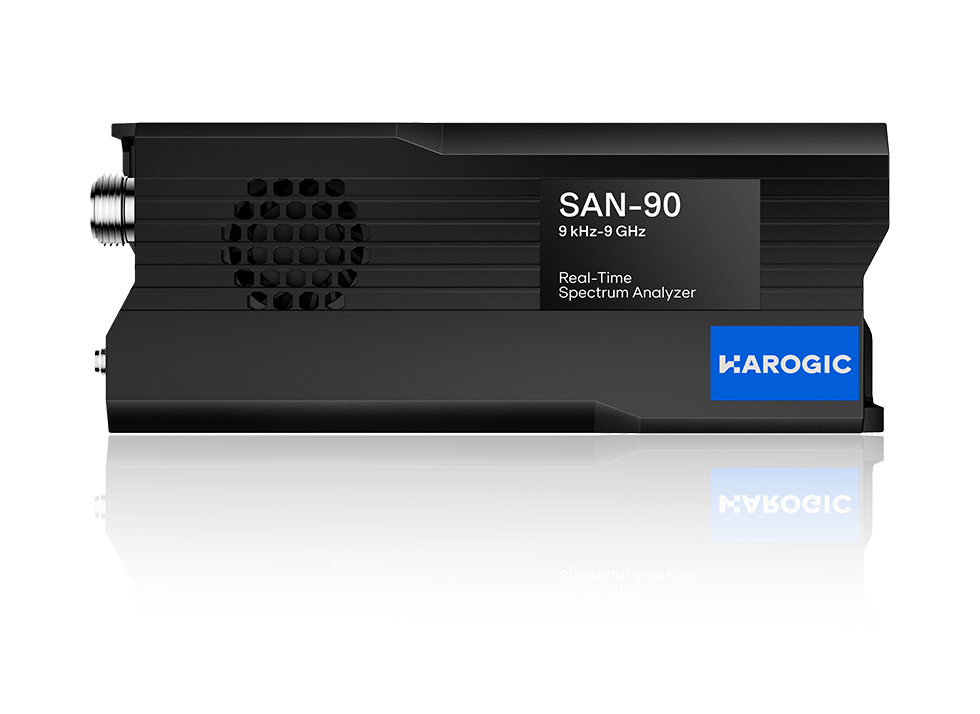

SAN Series Overview
The SAN Series is a compact real-time spectrum analyzer designed for RF signal analysis, field testing, laboratory verification, production test and spectrum monitoring applications.
With ultra-low phase noise, excellent DANL performance, fast sweep speed and optional 100 MHz analysis bandwidth, the SAN Series provides dependable measurement performance in a compact form factor.
9 kHz-9 GHzMaximum frequency range
-110 dBc/HzPhase noise at 1 GHz, 10 kHz offset
-168 dBm/HzDANL at 1 GHz, amplifier on
1 THz/sFast sweep speed
Options
| Code | Description | Type | Price | Action |
|---|---|---|---|---|
| 01 | Built-in OCXO reference clock | Built-in hardware | $200.00 | |
| 05 | Internal high precision GNSS | Built-in hardware | $150.00 | |
| 20 | AUXIO IO Expansion board | Accessory | $40.00 | |
| 40 | T1 temperature class | Built-in hardware | $500.00 | |
| 41 | T2 temperature class, only available for core | Built-in hardware | $700.00 | |
| 50 | 100 MHz analysis bandwidth | Built-in hardware | $998.00 | |
| 71 | Basic vector modulation analysis | Software | $800.00 | |
| 72 | Pulse analysis | Software | $800.00 |
Accessories
Flash disk
* 1
USB 3.0 data cable
* 1
USB power cable
* 1
Power adapter
* 1
